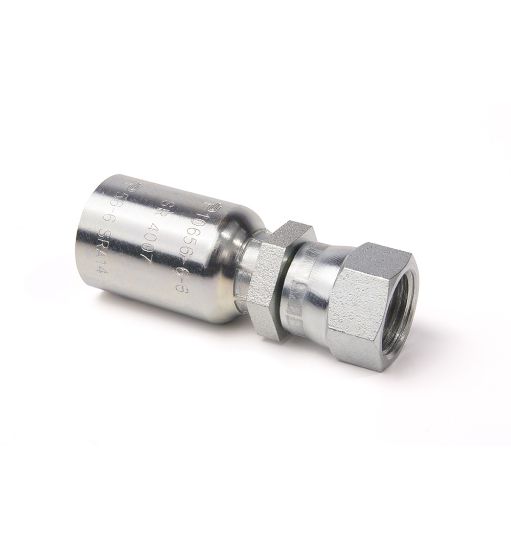

Picture of Global Fittings - 56 Series - Inch - 10656-2-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 10656-2-4

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
SKU 10656-2-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Materials of ConstructionSteelProduct StyleFemale JIC 37° - Swivel - Straight
Hose I.D. (inch)0.25"Length (inch)1.98"
Connection 2 Size3/8"-24BrandPARKER
DivisionParflex DivisionBody MaterialSteel
ShapeStraightTechnologyFluid & Gas Handling
CoatingChromium 6 Free-platedDivisionParflex Division
ConfigurationHose to PortFor Fluid TypeOil
Connection 1 TypeHoseTube Outside Diametern/a
IndustryIndustrial Manufacturing EquipmentApplicationUtility Equipment
Hex Size1/2 inch (see drawing legend H)Hex Size 2n/a
Maximum Operating Pressure34.5 MPa (Dependent on hose)Connection 1 Size1/4 inch Hose I.D.
Connection 2 TypeFemaleConnection Length25 mm Cut-off allowance
Hex Size 17/16 inch (see drawing legend J)Fitting Length50 mm (see drawing legend A)
Shipping Weight0.033 kgConnection 2 Size3/8"-24 inch Thread
