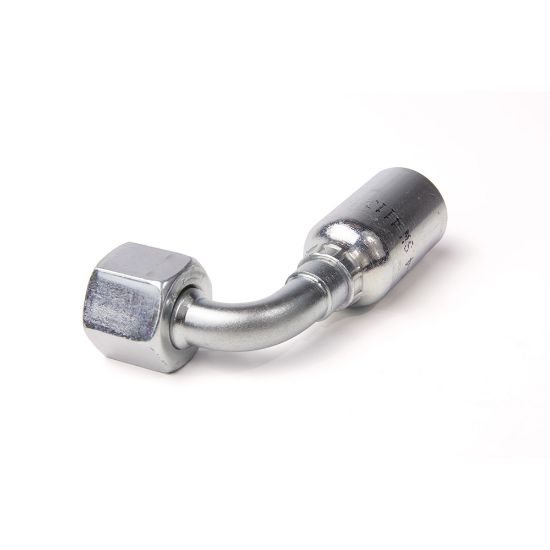

Picture of Global Fittings - 56 Series - Inch - 1J956-4-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 1J956-4-2

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
SKU 1J956-4-2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Materials of ConstructionSteelHose I.D. (inch)0.125"
Connection 2 Size9/16"-18Length (inch)2.04"
Product StyleFemale Seal-Lok - Swivel - 90° Elbow - Short DropBrandPARKER
DivisionParflex DivisionBody MaterialSteel
TechnologyFluid & Gas HandlingCoatingChromium 6 Free-plated
DivisionParflex DivisionHex Sizen/a
ConfigurationHose to PortConnection 1 TypeHose
Tube Outside Diametern/aIndustryIndustrial Manufacturing Equipment
ApplicationIndustrial HydraulicsHex Size 2n/a
For Fluid TypeAir (Pneumatic Media)Connection 1 Size3 mm Hose I.D.
Maximum Operating Pressure34.5 MPa (Dependent on hose)Connection 2 TypeFemale
Connection 2 Size9/16"-18 inch ThreadHex Size 111/16 inch (see drawing legend J)
Fitting Length52 mm (see drawing legend A)Shipping Weight0.097 lb
Connection Length1-7/16 inch Cut-off allowanceShapeElbow 90° Short Drop
