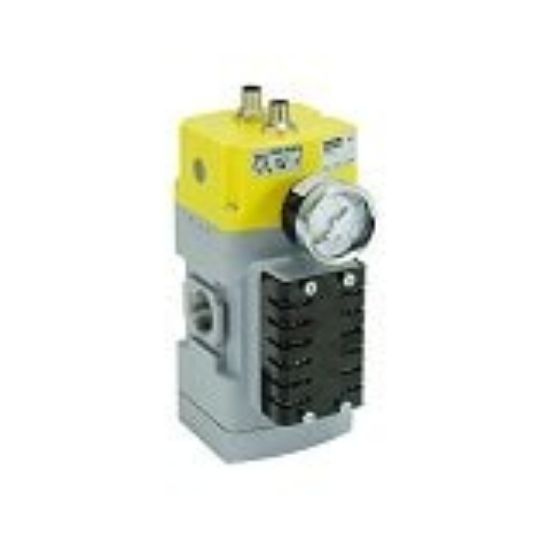

Picture of Global FRL Valves (Safety Exhaust) - P33DB16ACEG

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global FRL Valves (Safety Exhaust) - P33DB16ACEG

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.
Availability:
Backordered
SKU P33DB16ACEG
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Product Style[P33D] - Without Soft StartPressure Gauge[EG] - Standard Dial Gauge
OptionsBlack GrillSolenoid Connection[A] - M12 pins: 2 & 4 with common 3
Port Type[B1] - BSPP "G"Port Size[6] - 3/4 inch
Sensor Connection[C] - M12 pins: 5&2, 1&4, common 3Electrical ConnectionM12 (x2)
BrandPARKERSeal MaterialNitrile Butadiene Rubber (NBR)
Product TypeSafety Exhaust ValveMinimum Operating Pressure10
Height17.87Maximum Operating Pressure150
ApplicationPneumatic Safety Systems (up to Category 4 / performance level ā€˜eā€™)Operating Temperature4 to 50
Specifications MetCategory 4, Performance Level e per EN ISO 13849-1 (pending)Body MaterialCast Aluminum
Product StyleElectro-Pneumatic (Solenoid Actuated)Mounting TypeInline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Port Size3/4Input Voltage24
IndustryGeneral IndustryTechnologyPneumatics
Port TypeNPTWeight1.9
Length10.93Function3/2 Normally-Closed
DivisionPneumatic DivisionWidth8
Flow Rateā‰¤ 265
