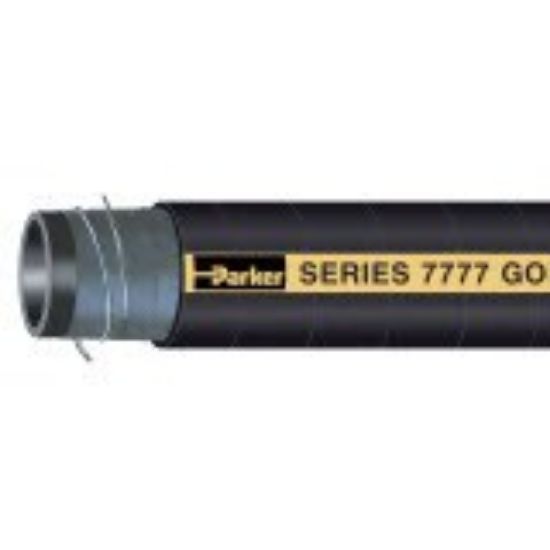

GOLD LABEL® Jac-Riser Aircraft Fueling Suction Hose, Series 7777 - 7777-2500

Name: GOLD LABEL® Jac-Riser Aircraft Fueling Suction Hose, Series 7777 - 7777-2500
SKU: 7777-2500

This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU 7777-2500

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (inch)	2-1/2	Division	Hose Products Division
Minimum Operating Temperature	-40	Design Factor	4:1
Maximum Operating Pressure	300	Package Type	Coil
Cover Color	Black	Minimum Bend Radius	10
Maximum Operating Temperature	180	Hose Inner Tube Material	Black
Inside Diameter	2-1/2	Outside Diameter	3.290
Cover Structure	Wrapped	Application	Fuel Transfer
Vacuum Pressure Rating	29	Hose Reinforcement Material	4 Plies of Textile with Dual Wire Helix
Media	Fuels (Avgas, Jet Fuel) - Check fuel type with our catalogue chart.	Weight	3.41
Specifications Met	API IP	Cover Material	Static
Maximum Length	200

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
