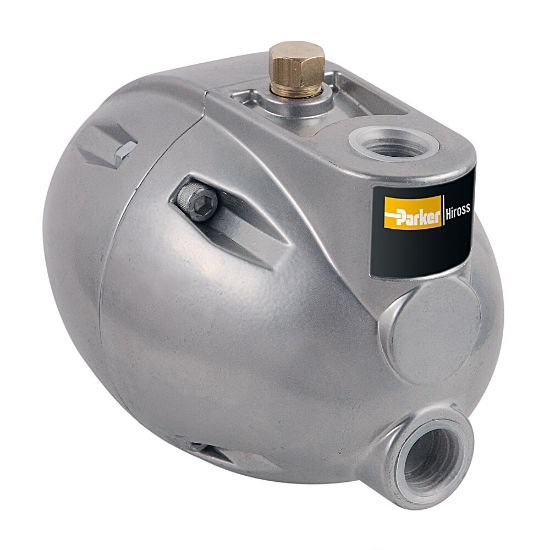

Picture of HDF Series Zero Loss Mechanical Float Condensate Drain - HDF120

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

HDF Series Zero Loss Mechanical Float Condensate Drain - HDF120

Zero loss mechanical float condensate drains for industrial compressed air and biogas treatment applications.
Availability:
Backordered
SKU HDF120
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port SizeInlet: ½" / Outlet: ½"Operating Pressure1-16 barg (15-232 psig)
Connection TypeBSPPFlow Rate5400 m³/h (3175 cfm)
OptionsNoneWidth156.0 mm
Product SeriesHDFMaterials of ConstructionBody: Aluminium<br/>Float: Plastic<br/>Lever: Plastic
Weight0.9 kgDepth108.0 mm
Operating Temperature2 to 60 °CDivisionGas Separation and Filtration Division EMEA
BrandPARKERHeight111.0 mm
TechnologyFiltrationApplicationCompressed Air and Biogas Applications
Product TypeCondensate DrainDivisionGas Separation and Filtration Division EMEA
IndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>BiogasElectrical RequirementsNot Applicable
Product StyleExternal Float Drain
