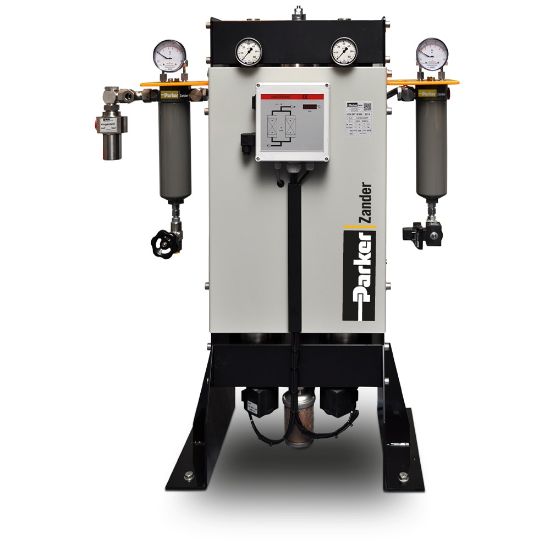

Picture of HDK-MT High Pressure Compressed Air Dryer (up to 100 bar g) - H15/100D2-G230MT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

HDK-MT High Pressure Compressed Air Dryer (up to 100 bar g) - H15/100D2-G230MT

For applications requiring high pressure compressed air or nitrogen gas up to 100 bar with volume flows of up to 650m³/h and pressure dew points down to -40°C.
Availability:
Backordered
SKU H15/100D2-G230MT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate (m³/h)120 @ 100 bar(g) / PDP - 40° CController TypeMultitronic with Dew Point Sensor
Minimum Operating Temperature1 °CConnection TypeBSP-P DIN ISO 228
Port Size1/2 inchMinimum Ambient Temperature1 °C
Maximum Operating Temperature55 °CCompatible After FilterGH7/100ZP/VV
DivisionGas Separation and Filtration Division EMEAWidth700 mm
BrandZanderPressure Dew Point-40 °C
Height1050 mmMaximum Operating Pressure1450 psig
Maximum Flow Rate70.63 CFM at 1450 psig, PDP to 104°FCompatible PrefilterGH7/100XP
Maximum Ambient Temperature50 °CSpecifications MetPED 97/23/EC Fluid Group II, TR
Weight160 kgIngress Protection Rating65
Electrical Requirements230V, 50-60Hz, others on requestDepth370 mm
Product TypeHigh Pressure AdsorptionMinimum Operating Pressure725.19 psig
