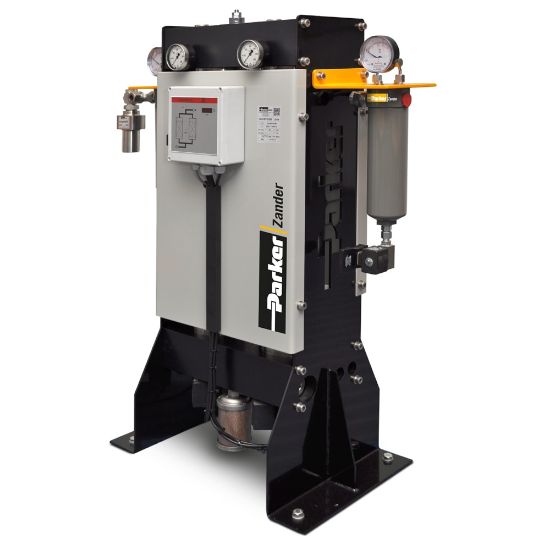

HDK-MT High Pressure Compressed Air Dryers (up to 350 bar g) - H25/350D2-G115MT

Name: HDK-MT High Pressure Compressed Air Dryers (up to 350 bar g) - H25/350D2-G115MT
SKU: H25/350D2-G115MT

For applications requiring high pressure compressed air or nitrogen gas up to 350 bar with volume flows of up to 1180m³/h and pressure dew points down to -40°C.

Availability:

Backordered

SKU H25/350D2-G115MT

POR

Qty:

Products specifications

Attribute name	Attribute value
Electrical Requirements	115V 1ph 50/60Hz	Port Size	½"
Flow Rate	400 m³/h @ 7 barg (235 cfm @ 102 psig)	Noise Level	95 to 115 dBA
Brand	PARKER	Division	Gas Separation and Filtration Division EMEA
Minimum Operating Pressure	100 barg	Pressure Dew Point	-4 to -40 °F
Compatible After Filter	GH7/350ZP/VV (Included)	Height	57.1 inch
Connection Type	BSPP	Maximum Ambient Temperature	50 °C
Weight	114 lb	Specifications Met	PED 97/23/EC Fluid Group II, TR
Maximum Operating Pressure	350 barg	Ingress Protection Rating	65
Width	700.0 mm	Depth	14.6 inch
Product Type	High Pressure Adsorption	Compatible Prefilter	GH7/350XP (Included) GH7/350ZP (Required)
Minimum Operating Temperature	33.8 °F	Controller Type	Multitronic with Dew Point Sensor
Minimum Ambient Temperature	1 °C	Maximum Operating Temperature	55 °C
