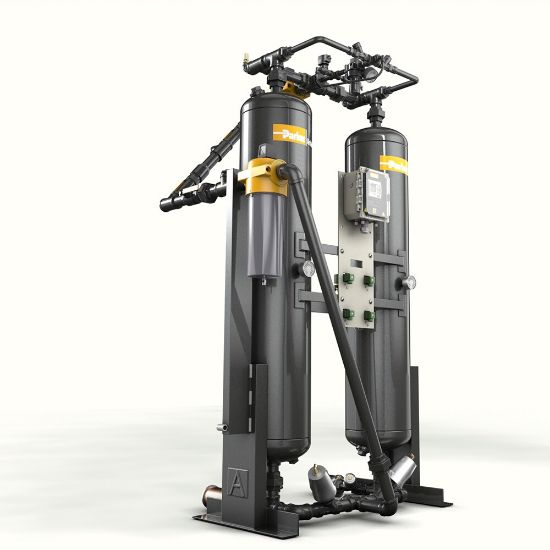

Picture of Heatless Desiccant Air Dryer - TW Series - TW3001FY14NNN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Heatless Desiccant Air Dryer - TW Series - TW3001FY14NNN

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance
Availability:
Backordered
SKU TW3001FY14NNN
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate (cfm)3000Pressure Dew Point (F)-40
Electrical Requirements120 v / 1 ph / 60 hzCompatible PrefilterJLA3206-C
Compatible After FilterJLA3506-FMaximum Flow Rate5097.03 m3/hour
Compatible Prefilter ElementJAE3-C Qty 4Maximum Ambient Temperature120 °F
Minimum Operating Temperature50 °FMinimum Operating Pressure80 psi
Optional AccessoriesPre and After FilterWeight8300 lb
Height112 inchMinimum Ambient Temperature40 °F
Compatible After Filter ElementJAE3-F Qty 3BrandAirtek
Depth60 inchPurge Pressure Rate450
Width96 inchDivisionIndustrial Gas Filtration and Generation Division
Maximum Operating Temperature120 °FInstalled Condensate Drain TypeTimed Drain
Maximum Inlet Pressure Rating100 PSIConnection Type6 FLG
Maximum Operating Pressure135 psi
Product resources

Literature and Reference Materials
