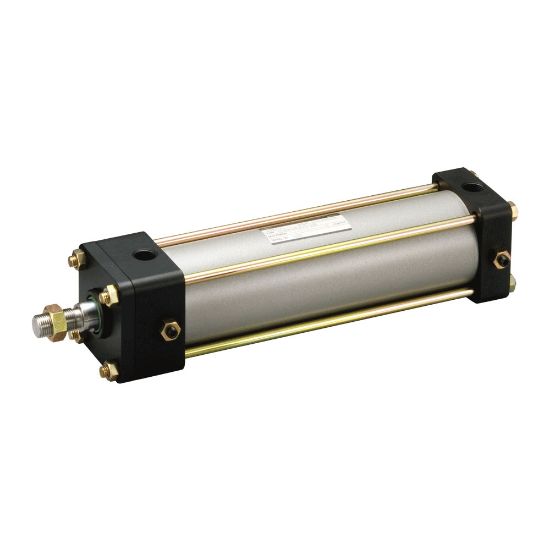

Picture of Heavy Duty Pneumatic Cylinder Model:10A-2 - 10A-2Q1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Heavy Duty Pneumatic Cylinder Model:10A-2 - 10A-2Q1

The heavy duty pneumatic cylinder 10A-2 series. The bore size is φ32 to φ250. The main raw material is iron. Urethane dust wiper is used. The lSO 6430 standard has been adopted. (Excluding φ140 and φ180)
Availability:
Backordered
SKU 10A-2Q1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Screw ToleranceJIS 6g/6HTypeDual stroke Single Rod, Standard type
Fluid TypeAirLubricationUnnecessary(But possible)
Speed Range50-700mm/sRelated Partsna
Mounting StylenaRod End StylesRod eye(T-end),Rod eye(S-end),Rod clevis(Y-end)with pin, Floating joint
Cushioning TypeWith cushions on both endsBellows MaterialStandard：Nylon tarpaulin Semi-standard：Chloroprene,Conex
Bore Diameter (mm)32, 40, 50, 63, 80, 100, 125, 140, 160, 180, 200, 250Pressure Range (MPa)0.1-1.0
Temperature Range (C)-10-+70(No freezing)Cushioning Stroke (mm)na
Stroke Adjustment Range (mm)0-50Stroke Length Tolerance (mm)0-+1.8(0-250mm), 0-+1.5(251-1000mm), 0-+2.0(1001-2000mm)
DivisionTAIYO Division
