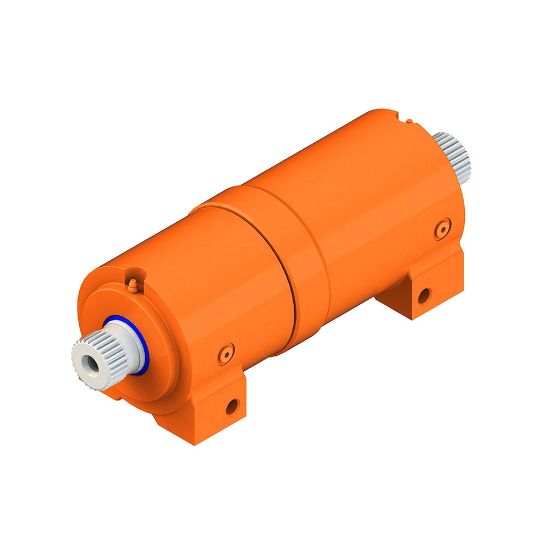

Picture of Helical Hydraulic Rotary Actuator - Helac T-Series - HELAC T SERIES

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Helical Hydraulic Rotary Actuator - Helac T-Series - HELAC T SERIES

The Helac T Series Helical Hydraulic Rotary Actuator is ideal for applications where torque generation and higher cycle rates are the primary requirements, featuring splined output shafts with 200-220 degrees of rotation.
Availability:
Backordered
SKU HELAC T SERIES
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Pressure3000Torque Rating25000 to 60000
Radial Load Capacity4500 to 8600Mounting TypeFoot
ApplicationHydraulicDisplacement47.3 to 101
BrandHelacWidthVaries per Model. See Catalog for Specifications.
Rotation Angle200Drive Torque25000 to 60000
HeightVaries per Model. See Catalog for Specifications.Axial Load Capacity4500 to 8600
DivisionCylinder DivisionStraddle Moment37500 to 90000
Operating Pressure3000IndustryHydraulic
Maximum Output TorqueVaries per Model. See Catalog for Specifications.Weight74 to 166
TechnologyHydraulicsHolding Torque54200 to 127000
LengthVaries per Model. See Catalog for Specifications.DivisionCylinder Division
Product SeriesT SeriesProduct TypeHelical
Product resources

Literature and Reference Materials
