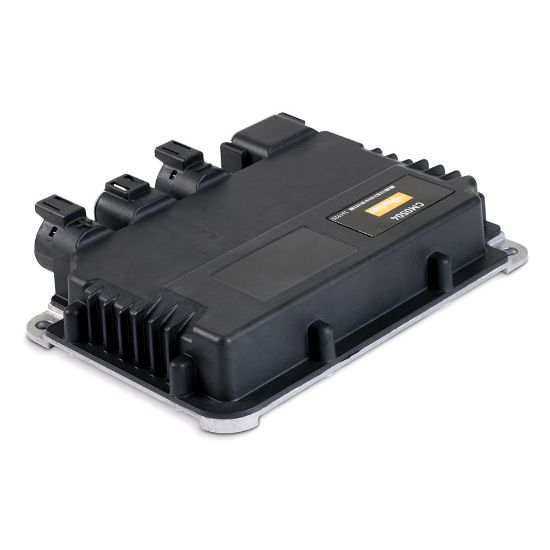

Picture of High Current Controller Module - CM0504 - 1038003ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Current Controller Module - CM0504 - 1038003ECD

The CM0504 Slave Control Module includes a single CAN interface, 5 inputs and 4 outputs with error checking. The main function of the module is to provide a means of controlling high current loads through messages on the CAN bus.
Availability:
Backordered
SKU 1038003ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40 °CDivisionElectronic Motion and Controls Division
IndustryAgricultureMaximum Operating Temperature85 °C
Number of Outputs4Power Supply Voltage24 V
SoftwarePreconfiguredModel NumberCM0504
Controller TypeSlave ModuleHousing MaterialPlastic Housing with Aluminum Base
Number of Inputs5Specifications MetE-mark
Electrical ConnectionDeutsch DTPOutput Current Rating25 A
Communication Interface1x CAN 2.0B (J1939)Ingress Protection RatingIP67
