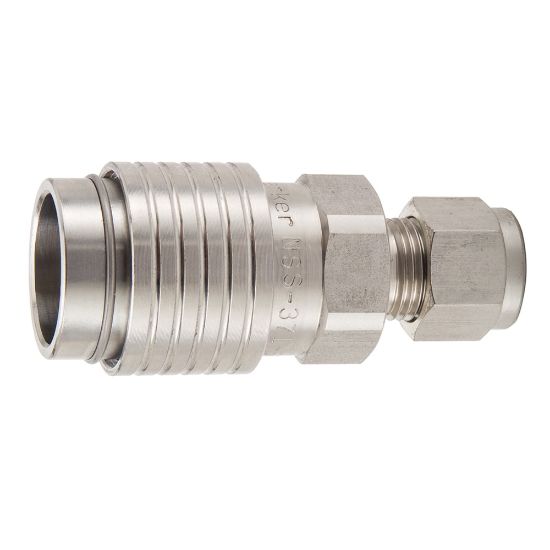

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-371-8MA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-371-8MA

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-371-8MA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Size (inch)3/8Coupling HalfFemale Coupler
Hose I.D.NAConnection Thread Size (inch)1/2 A-Lok
Flow Rate10Body MaterialStainless Steel
DivisionQuick Coupling DivisionSeal MaterialEPDM
Hex Size0.88Maximum Operating Temperature250
Product TypePush-to-ConnectMaximum Operating Pressure2000
Minimum Operating Temperature-70Valve TypeFlat Face
Connection TypeFemale ThreadApplicationThermal Management
