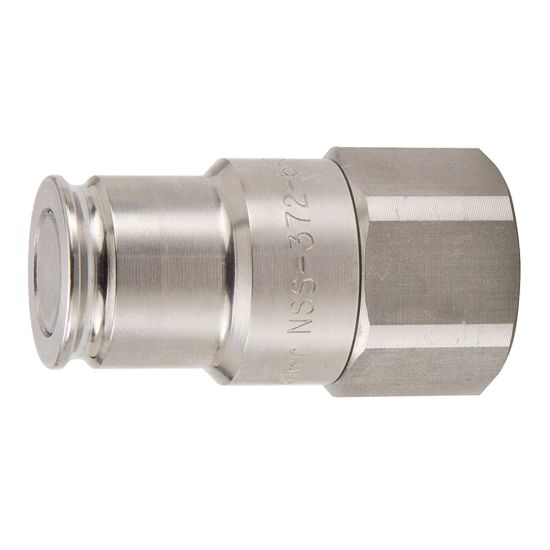

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-372-6FO

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-372-6FO

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-372-6FO
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfMale NippleBody Size (inch)3/8
Hose I.D.NAConnection Thread Size (inch)9/16 18 UNF
Body MaterialStainless SteelDivisionQuick Coupling Division
Seal MaterialEPDMMaximum Operating Temperature250 °F
Maximum Operating Pressure2000 psiProduct TypePush-to-Connect
Hex Size0.94 inchMinimum Operating Temperature-70 °F
Valve TypeFlat FaceFlow Rate10 Gal/min
ApplicationLiquid CoolingConnection TypeFemale Thread
