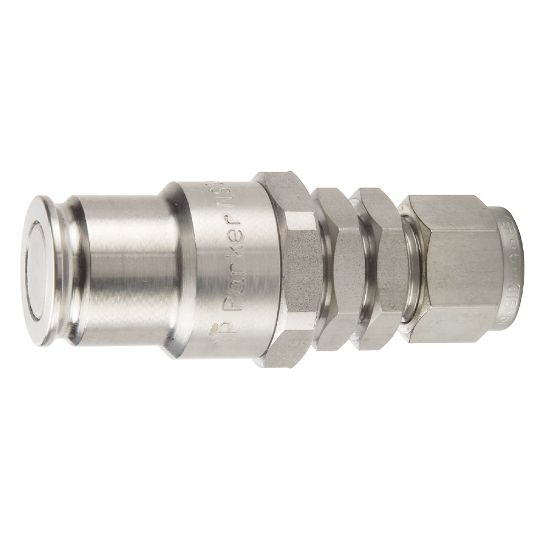

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-372-6HMA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-372-6HMA

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-372-6HMA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Size (inch)3/8Hose I.D.NA
Coupling HalfMale NippleConnection Thread Size (inch)3/8 A-Lok
Minimum Operating Temperature-70Product TypePush-to-Connect
Hex Size0.94Flow Rate10
Body MaterialStainless SteelMaximum Operating Pressure2000
DivisionQuick Coupling DivisionApplicationThermal Management
Connection TypeFemale Thread - Panel MountMaximum Operating Temperature250
Seal MaterialEPDMValve TypeFlat Face
