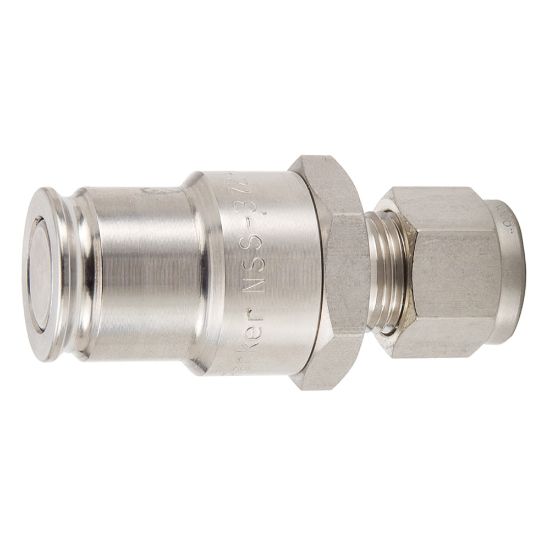

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-372-6MA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-372-6MA

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-372-6MA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfMale NippleBody Size (inch)3/8
Connection Thread Size (inch)3/8 A-LokHose I.D.NA
Body MaterialStainless SteelDivisionQuick Coupling Division
Flow Rate10 Gal/minMinimum Operating Temperature-70 °F
Valve TypeFlat FaceSeal MaterialEPDM
Connection TypeFemale ThreadMaximum Operating Pressure2000 psi
ApplicationLiquid CoolingMaximum Operating Temperature250 °F
Hex Size0.94 inchProduct TypePush-to-Connect
