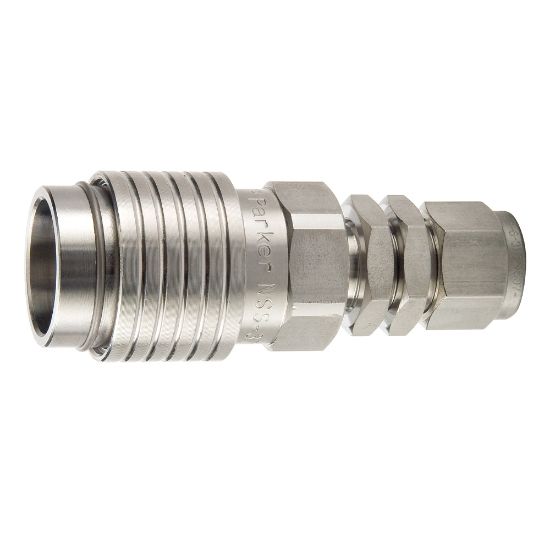

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-501-12HMA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-501-12HMA

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-501-12HMA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfFemale CouplerHose I.D.NA
Connection Thread Size (inch)3/4 A-LokBody Size (inch)1/2
Seal MaterialEPDMValve TypeFlat Face
Maximum Operating Pressure300Maximum Operating Temperature250.0
Product TypePush-to-ConnectHex Size1.25
DivisionQuick Coupling DivisionFlow Rate12
ApplicationThermal ManagementMinimum Operating Temperature-70.0
Body MaterialStainless SteelConnection TypeFemale Thread - Panel Mount
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
