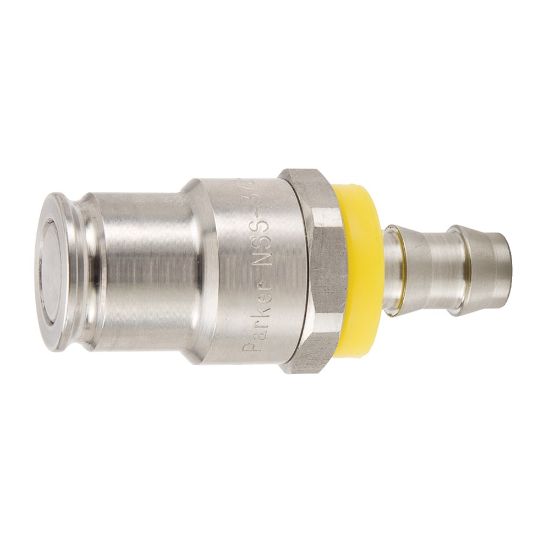

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-502-8HB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-502-8HB

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-502-8HB
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D.1/2Body Size (inch)1/2
Connection Thread Size (inch)naCoupling HalfMale Nipple
DivisionQuick Coupling DivisionHex Size1.25 inch
Flow Rate12 Gal/minMaximum Operating Temperature250.0 °F
Body MaterialStainless SteelApplicationSemiconductor
Seal MaterialEPDMValve TypeFlat Face
Minimum Operating Temperature-70.0 °FMaximum Operating Pressure300 psi
Connection TypeHose BarbProduct TypePush-to-Connect
