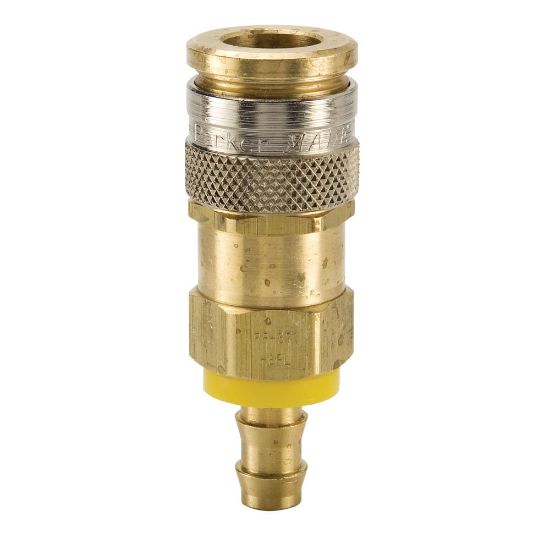

High Flow, Push to Connect, Air Tool & Breathing Air Quick Couplings (pneu) High Flow European Interchange - RF Series Couplers - RF-251-6PL

Name: High Flow, Push to Connect, Air Tool & Breathing Air Quick Couplings (pneu) High Flow European Interchange - RF Series Couplers - RF-251-6PL
SKU: RF-251-6PL

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU RF-251-6PL

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection Thread Size	N/A	Thread Style	n/a
Connection Type	Push-Lok hose barb	Body Size	1/4"
Hose I.D.	3/8"	Sleeve Type	Push-to-Connect
Plating Type	Nickel plating on steel sleeve	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Body Material	Brass
Lock Type	Locking balls	Application	Pneumatic
Coupling Half	Coupler	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Specifications Met	Interchanges with Rectus 25 and CEJN 320	Media	Low Pressure Fluids
Valve Type	Tubular

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products (PDF)
