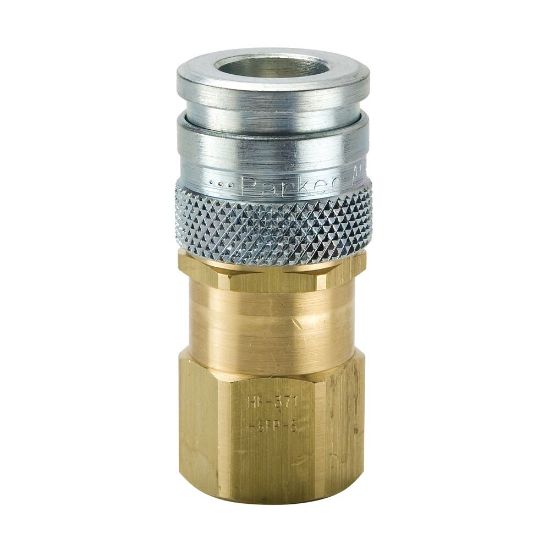

High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers - HF-251-4FP-S

Name: High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers - HF-251-4FP-S
SKU: HF-251-4FP-S

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU HF-251-4FP-S

POR

Qty:

Products specifications

Attribute name	Attribute value
Thread Style	Female	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Hose I.D. (inch)	na
Connection Type	NPSF	Body Material	Steel and brass
Minimum Operating Temperature	-40	Valve Type	Tubular
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Temperature	250	Maximum Operating Pressure	300
Media	Low pressure fluids and compressed air	Body Material	Brass
Lock Type	Locking balls	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Coupling Half	Coupler	Application	Pneumatic
Sleeve Type	Push to Connect	Plating Type	Zinc with clear trivalent chromate on steel body and sleeve
