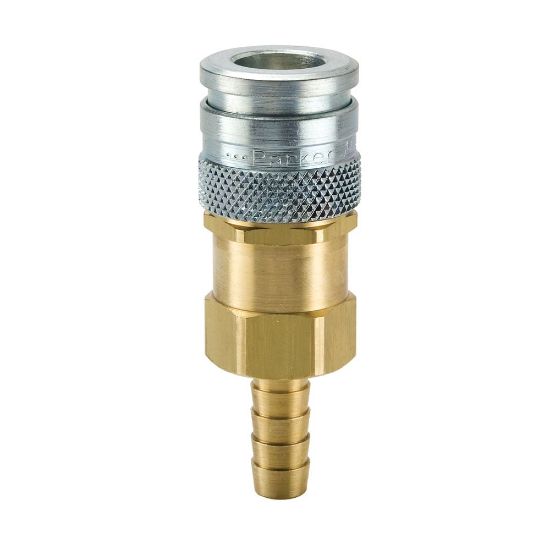

High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers - HF-251-6HB-S

Name: High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers - HF-251-6HB-S
SKU: HF-251-6HB-S

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU HF-251-6HB-S

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel and brass	Connection Thread Size (inch)	na
Thread Style	na	Connection Type	Hose barb
Hose I.D. (inch)	3/8	Body Size (inch)	1/4
Body Material	Brass	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Lock Type	Locking balls	Coupling Half	Coupler
Application	Pneumatic	Sleeve Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate on steel body and sleeve	Division	Quick Coupling Division
Minimum Operating Temperature	-40	Valve Type	Tubular
Maximum Operating Temperature	250	Seal Material	Nitrile
Maximum Operating Pressure	300	Media	Low pressure fluids and compressed air
