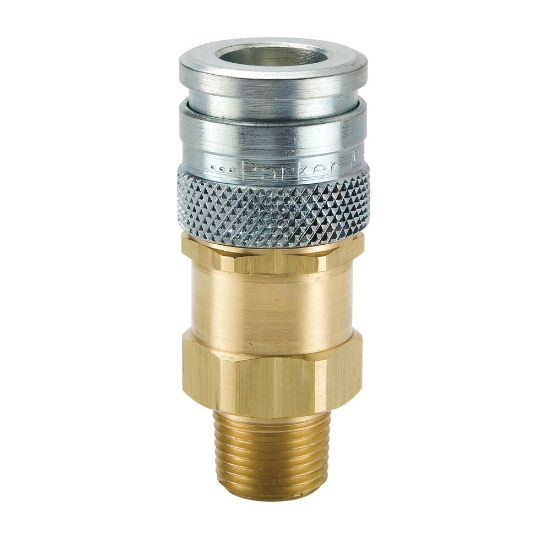

High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers - HF-251-6MP-S

Name: High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers - HF-251-6MP-S
SKU: HF-251-6MP-S

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU HF-251-6MP-S

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Size (inch)	1/4	Hose I.D. (inch)	na
Connection Thread Size (inch)	3/8 - 18	Thread Style	Male
Connection Type	NPTF	Body Material	Steel and brass
Application	Pneumatic	Coupling Half	Coupler
Plating Type	Zinc with clear trivalent chromate on steel body and sleeve	Sleeve Type	Push to Connect
Division	Quick Coupling Division	Minimum Operating Temperature	-40
Valve Type	Tubular	Maximum Operating Temperature	250
Seal Material	Nitrile	Media	Low pressure fluids and compressed air
Maximum Operating Pressure	300	Body Material	Brass
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Lock Type	Locking balls
