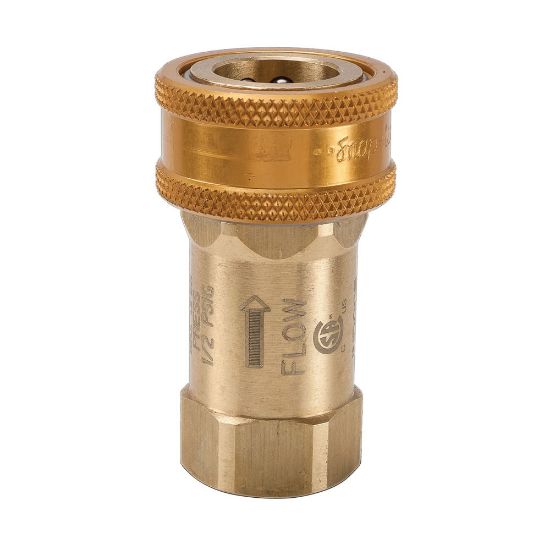

Picture of High Flow, Valved, Hydraulic Quick Couplings - HP Series - HP-1501-24FB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Valved, Hydraulic Quick Couplings - HP Series - HP-1501-24FB

Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU HP-1501-24FB
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Size1 1/2Coupling HalfFemale Coupler
Connection TypeFemale BSPPConnection Thread Size (inch)1 1/2 - 11 1/2
DivisionQuick Coupling DivisionPlating TypeZinc with clear trivalent chromate
Hex Size2.25 inchMaximum Operating Pressure5000 psi
Seal MaterialNitrileProduct TypeManual Connect inch
ApplicationHydraulic, high pressureFlow Rate100 Gal/min
Valve TypePoppetBody MaterialSteel
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
