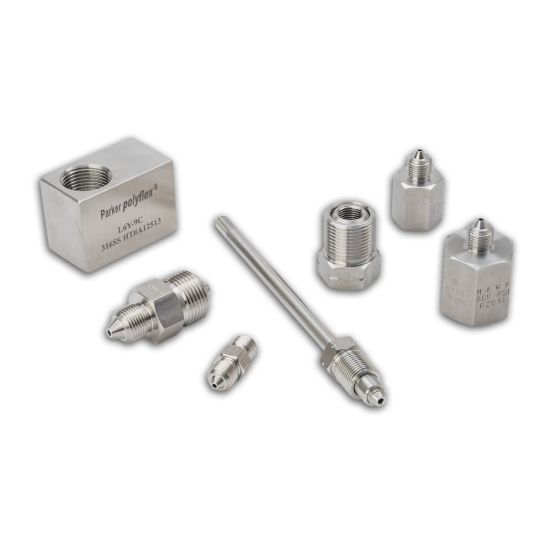

Picture of High Pressure Adapters - 6Y6Y-6-9C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Adapters - 6Y6Y-6-9C

Stainless steel adapters with a 58/60 degree coned and threaded tubing design and maximum working pressure ratings up to 60,000 psi.
Availability:
Backordered
SKU 6Y6Y-6-9C
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 2 Thread Size1-1/8"-12 UNFConnection 1 TypeFemale High Pressure
Connection 2 TypeFemale High PressureConnection 1 Thread Size3/4"-16 UNF
Connection 2 TypeFemaleDivisionParflex Division
Overall Length2Maximum Operating Pressure60000
Hex Size1.37Connection 1 Size3/4"-16
Connection 2 Size1-1/8"-12Connection 1 TypeFemale
Materials of ConstructionStainless Steel AISI 316
