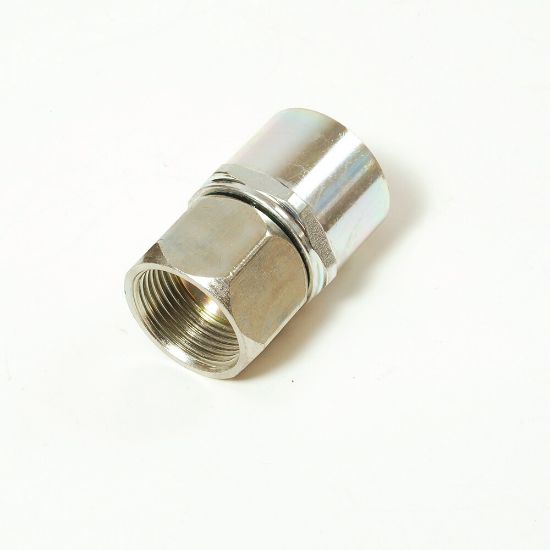

Picture of High Pressure Fittings for PTFE High Pressure Hose - 94/95 Series - 10694-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Fittings for PTFE High Pressure Hose - 94/95 Series - 10694-12-12

94/95N Series Fittings are permanent, crimp style, steel fittings used with Parflex high pressure PTFE hoses 944B and 955B.
Availability:
Backordered
SKU 10694-12-12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Length (inch)2.52"Product StyleHigh Pressure 94 Series Female JIC 37° - Swivel - Straight
Hose I.D. (inch)0.625"Connection 2 Size1-1/16"-12
BrandPARKERShapeStraight
CoatingChromium 6 Free-platedDivisionParflex Division
Hex Size1-1/4 inch (see drawing legend J)IndustryFood & Beverage
TechnologyFluid & Gas HandlingApplicationInstrumentation
Product TypeHose FittingsBody MaterialSteel
ConfigurationHose to PortFitting Length64 mm
For Fluid TypeAir (Pneumatic Media)Product Series94
Connection 1 Size16 mmConnection 1 TypeHose
Connection 2 Size1-5/16"-12 inch ThreadConnection 2 Type37° Flare
Connection Length33 mmSpecifications MetN/A
DivisionParflex DivisionMaximum Operating Pressure27.6 MPa
