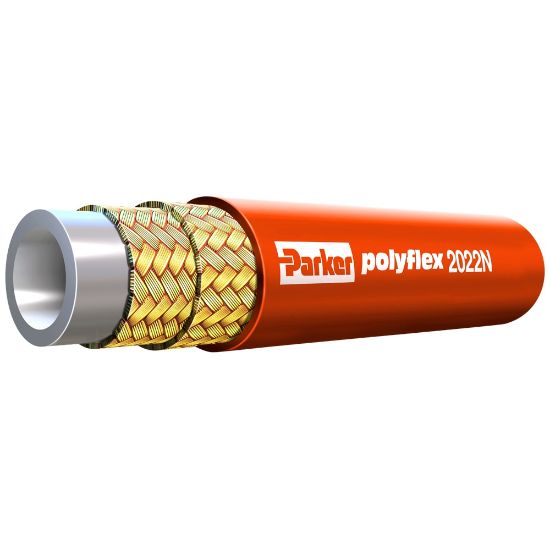

Picture of High Pressure Hydraulic Hose - 2022N - 2022N-04V15

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2022N - 2022N-04V15

Parker 2022N is a 10,000 psi constant pressure hose from Polyflex designed for hydraulic or oil and gas applications.
Availability:
Backordered
SKU 2022N-04V15
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/4Cover MaterialPolyurethane - orange
DivisionParflex DivisionMaximum Operating Temperature176 °F
Minimum Operating Temperature-40 °CMediaAir
Size-4Inside Diameter1/4 inch
Design Factor4:1Minimum Bend Radius4 inch
Cover MaterialPolyurethaneHose Inner Tube MaterialPolyamide (PA)
ApplicationHydraulicsSpecifications MetISO 13628-5, Section 7.9
Maximum Operating Pressure690 barWeight0.14 kg/m
Outside Diameter13.8 mmCompatible Fitting8X Series Hose guards (HG2022N-4) are required for all hand held applications. Parker Parflex suggests the use of bend restrictors for all assemblies.
Hose Reinforcement MaterialBraid of Aramid FiberSafety FeaturesBend Restrictors Required for Hand Held Applications.
