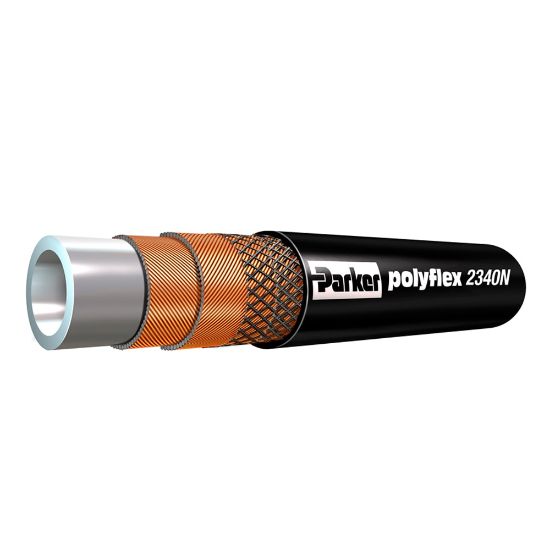

Picture of High Pressure Hydraulic Hose - 2340N-24 - 2340N-24

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2340N-24 - 2340N-24

High Pressure alternative to welded piping that requires costly labor & inspection and industrial grades of rubber hydraulic hose that are not designed or certified for subsea service.
Availability:
Backordered
SKU 2340N-24
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-24DivisionParflex Division
Minimum Operating Temperature-40Design Factor4:1
Maximum Operating Temperature212Cover MaterialPolyurethane
Hose Inner Tube MaterialPolyamide (PA)Maximum Operating Pressure5000
Inside Diameter1-1/2Size-24
ApplicationOil & GasSpecifications MetABS
Weight2.51MediaChemicals (Methanol) - Check your fluid compatibility with our catalogue chart.
Hose TypeSubseaOutside Diameter2.180
Compatible Fitting8X SeriesMinimum Bend Radius17.7
Hose Reinforcement Material2 Spirals of High Tensile Steel Wire
