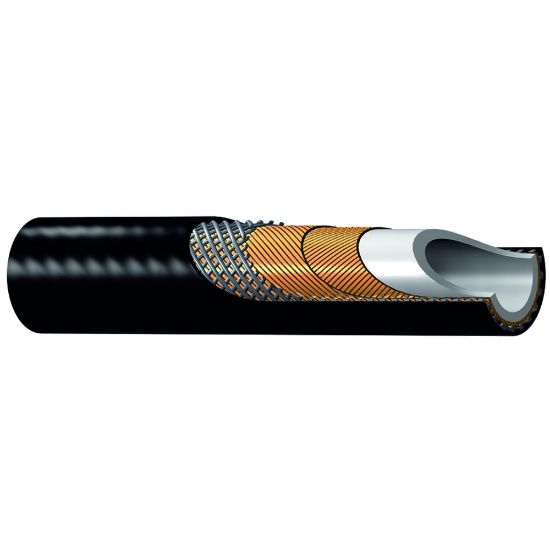

Picture of High Pressure Hydraulic Hose - 2380N/2388N - 2380N-025V10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2380N/2388N - 2380N-025V10

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.
Availability:
Backordered
SKU 2380N-025V10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)5/32Cover ColorBlack
Maximum Working Pressure (psi)10,875Minimum Operating Temperature-40 °F
Specifications MetN/ADesign Factor4:1
Weight0.16 kg/mMaximum Operating Temperature212 °F
Cover MaterialPolyurethaneMediaPetroleum Hydraulic Fluids
Inside Diameter4 mmCompatible Fitting8X Series
ApplicationOil & Gas Hydraulic SystemsMaximum Operating Pressure750 bar
Size-2.5Outside Diameter9.7 mm
Minimum Bend Radius2-3/16 inchHose Inner Tube MaterialPolyamide 12
Hose Reinforcement Material2 Spirals and 2 Open Spirals of High Tensile Steel Wire
