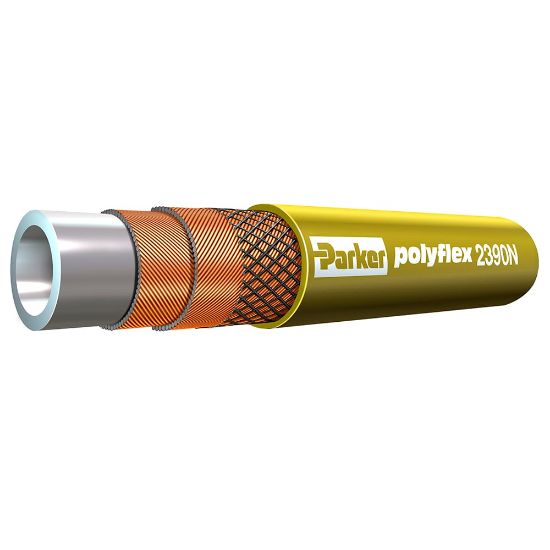

Picture of High Pressure Hydraulic Hose - 2390N - 2390N-025V10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2390N - 2390N-025V10

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.
Availability:
Backordered
SKU 2390N-025V10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cover ColorBlackHose I.D. (size)-025
Maximum Operating Pressure7,500 psiMinimum Operating Temperature-40 °F
DivisionParflex DivisionSpecifications MetN/A
Design Factor4:1Weight0.16 kg/m
Maximum Operating Temperature212 °FHose Inner Tube MaterialPolyamide (PA)
Outside Diameter0.380 inchApplicationHydraulic Systems
MediaPetroleum Hydraulic FluidsMinimum Bend Radius55 mm
Inside Diameter5/32 inchCompatible Fitting8X Series
Maximum Operating Pressure51.7 MPaSize-025
Cover MaterialPolyurethane Sea Water ResistantHose Reinforcement Material2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
