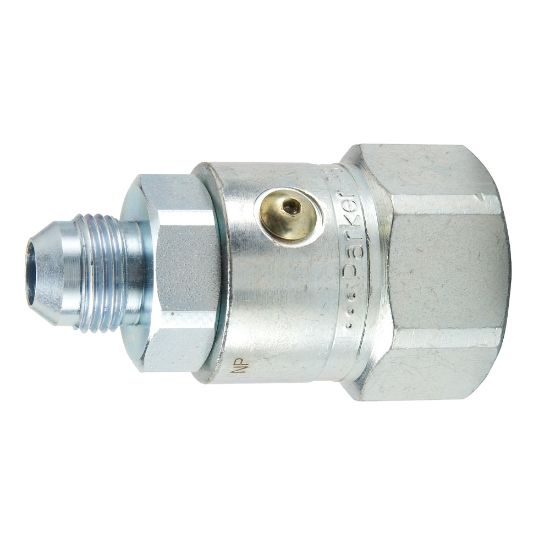

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1210306-12-12Y

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1210306-12-12Y

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1210306-12-12Y
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Working Pressure (psi)5000Housing Connection StyleFemale JIC 37 degree
Shaft Connection Thread Size (inch)1 1/16 - 12 UNHousing Connection Thread Size (inch)1 1/16 - 12 UN
Shaft Connection StyleMale JIC 37 degreeSeal MaterialFluorocarbon
ConfigurationInLineBody Size (inch)3/4
ConfigurationInlineMinimum Operating Temperature-15
DivisionQuick Coupling DivisionMaximum Operating Temperature400
Plating TypeZinc with clear trivalent chromateBody MaterialSteel
