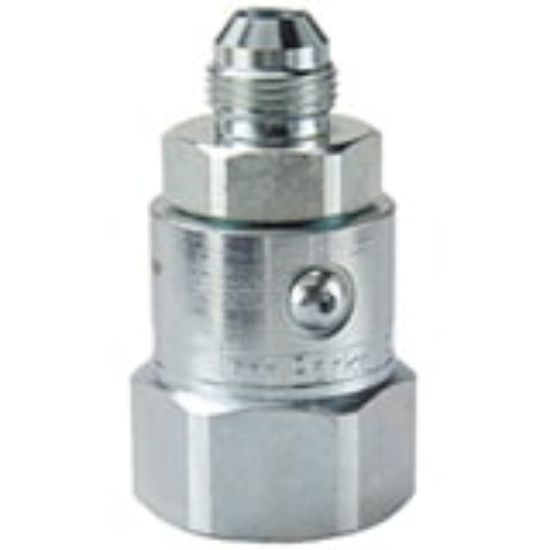

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1210310-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1210310-12-12

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1210310-12-12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Size (inch)3/4Housing Connection Thread Size (inch)1 1/16 - 12 UN
Shaft Connection StyleMale JIC 37 degreeHousing Connection StyleFemale SAE Straight Thread
ConfigurationInLineMaximum Working Pressure (psi)5000
Shaft Connection Thread Size (inch)1 1/16 - 12 UNSeal MaterialNitrile
Body MaterialSteelMaximum Operating Temperature250
ConfigurationInlinePlating TypeZinc with clear trivalent chromate
Minimum Operating Temperature-40DivisionQuick Coupling Division
