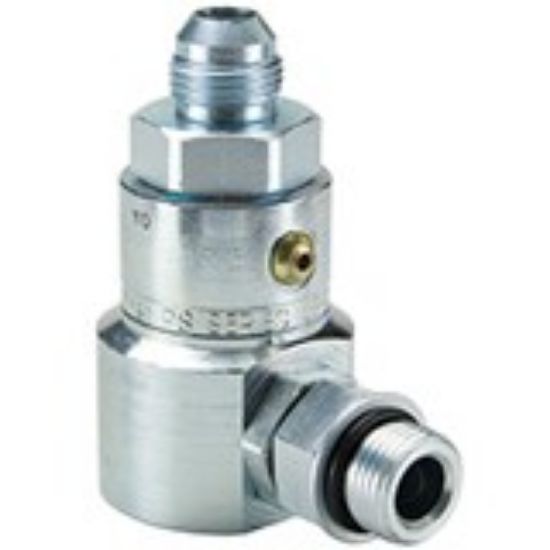

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1290305-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1290305-12-12

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1290305-12-12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Configuration90 degreeMaximum Working Pressure (psi)5000
Seal MaterialNitrileHousing Connection StyleMale SAE O-ring Straight Thread
Body Size (inch)3/4Housing Connection Thread Size (inch)1 1/16 - 12 UN
Shaft Connection Thread Size (inch)1 1/16 - 12 UNShaft Connection StyleMale JIC 37 degree
Maximum Operating Temperature250Plating TypeZinc with clear trivalent chromate
DivisionQuick Coupling DivisionMinimum Operating Temperature-40
Body MaterialSteelConfiguration90 degree
