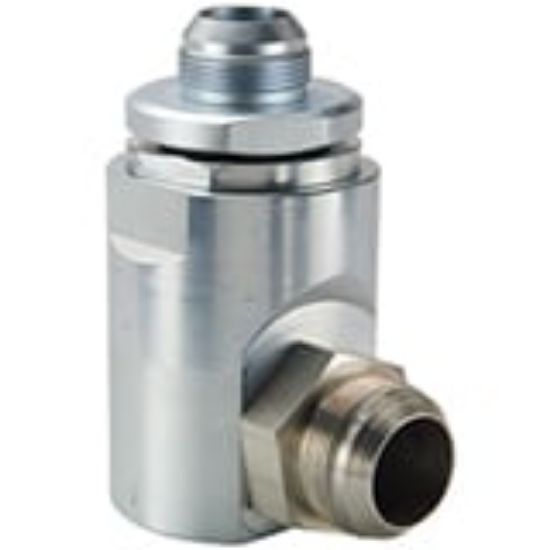

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS2490303-24-24

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS2490303-24-24

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS2490303-24-24
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Housing Connection Thread Size (inch)1 7/8 - 12 UNConfiguration90 degree
Maximum Working Pressure (psi)3000Shaft Connection Thread Size (inch)1 7/8 - 12 UN
Housing Connection StyleMale JIC 37 degreeSeal MaterialPolyurethane U-cup
Shaft Connection StyleMale JIC 37 degreeBody Size (inch)1 1/2
Maximum Operating Temperature180DivisionQuick Coupling Division
Minimum Operating Temperature-30Body MaterialSteel
Plating TypeZinc with clear trivalent chromateConfiguration90 degree
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
