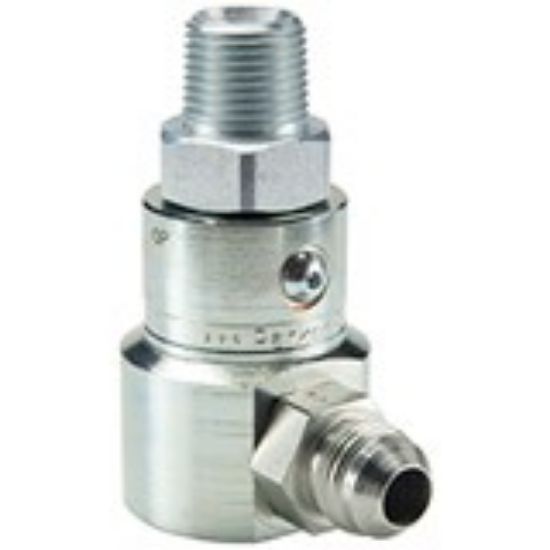

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS490103-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS490103-4-4

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS490103-4-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Configuration90 degreeMaximum Working Pressure (psi)5000
Shaft Connection StyleMale NPTFSeal MaterialNitrile
Housing Connection StyleMale JIC 37 degreeBody Size (inch)1/4
Shaft Connection Thread Size (inch)1/4 - 18 NPTFHousing Connection Thread Size (inch)7/16 - 20 UNF
DivisionQuick Coupling DivisionBody MaterialSteel
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Plating TypeZinc with clear trivalent chromateConfiguration90 degree
