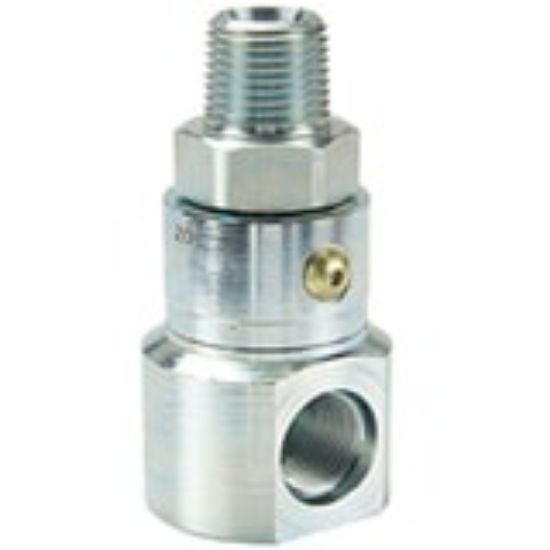

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS490110-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS490110-4-4

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS490110-4-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileHousing Connection StyleFemale SAE Straight Thread
Shaft Connection StyleMale NPTFShaft Connection Thread Size (inch)1/4 - 18 NPTF
Housing Connection Thread Size (inch)7/16 - 20 UNFMaximum Working Pressure (psi)5000
Configuration90 degreeBody Size (inch)1/4
Plating TypeZinc with clear trivalent chromateDivisionQuick Coupling Division
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Body MaterialSteelConfiguration90 degree
