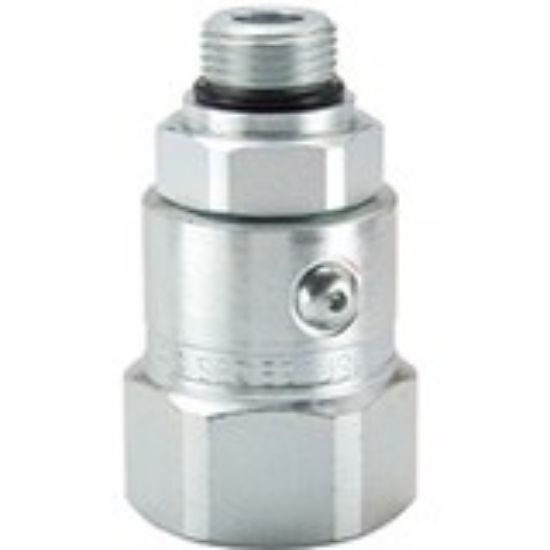

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS610510-6-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS610510-6-6

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS610510-6-6
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Shaft Connection StyleMale SAE O-ring Straight ThreadConfigurationInLine
Housing Connection StyleFemale SAE Straight ThreadBody Size (inch)3/8
Shaft Connection Thread Size (inch)9/16 - 18 UNFSeal MaterialNitrile
Housing Connection Thread Size (inch)9/16 - 18 UNFMaximum Working Pressure (psi)5000
Body MaterialSteelPlating TypeZinc with clear trivalent chromate
ConfigurationInlineMinimum Operating Temperature-40
DivisionQuick Coupling DivisionMaximum Operating Temperature250
