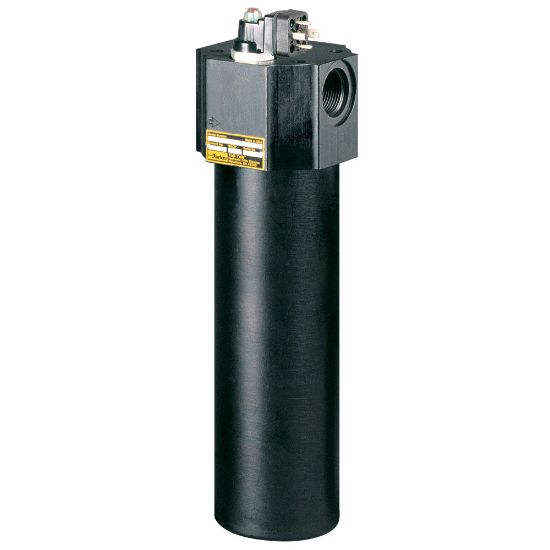

High Pressure Inline/Duplex Filter 15P/30P/30PD Series - 30P220QVM2SKX4

Name: High Pressure Inline/Duplex Filter 15P/30P/30PD Series - 30P220QVM2SKX4
SKU: 30P220QVM2SKX4

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:

Backordered

SKU 30P220QVM2SKX4

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Micron Rating	20Q Microglass
Options	SAE-4 drain port on bowl	Indicator Type	visual automatic reset-side mounted
Mounting Style	inline	Port Connection Type	manifold ports
Flow Rate	55 GPM (208 LPM)	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Fluorocarbon
Filter Element Type	Cartridge	Indicator Pressure Setting	3.5 bar
Bypass Valve Pressure Rating	3.5 bar	Product Style	Hydraulic Filter
Micron Rating	20Q Microglass	Maximum Operating Temperature	135.0 °C
Options	SAE-4 drain port on bowl	Port Type	manifold ports
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258	Indicator Type	visual automatic reset-side mounted
Pressure Rating	206.9 bar	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Weight	8.7 lb (3.9 kg)	Flow Rate	208.0 L/min
Compatible Element	933136Q

Product resources

Literature and Reference Materials
