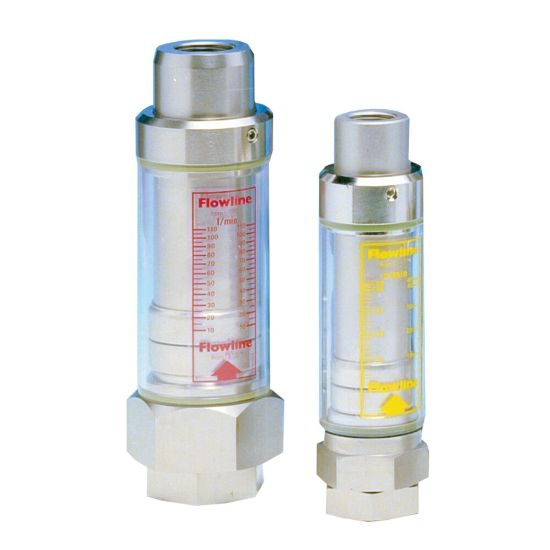

High Pressure Mechanical Flowmeter - Flowline - FM26122222

Name: High Pressure Mechanical Flowmeter - Flowline - FM26122222
SKU: FM26122222

The Flowline Series is a range of rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 - 360 L/PM. Maximum allowable working pressure: 350 bar (5076 psi).

Availability:

Backordered

SKU FM26122222

POR

Qty:

Products specifications

Attribute name	Attribute value
Housing Material	Brass	For Fluid Type	Water
Flow Rate	0.5 to 4.5 l/min	Brand	PARKER
Technology	Filtration	Body Material	Brass
Materials of Construction	Brass	Port Size	1/4 inch
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
For Fluid Type	Water	Product Style	Flow Meter
Product Type	Condition Monitor	Seal Material	Fluoroelastomer
Industry	Industrial & Chemical Processing	Specifications Met	Pressure Directive
Accuracy	+/- 5% FSD	Width	32 mm
Height	32 mm	Length	123 mm
Diameter	32 mm	Flow Rate	0.5 to 4.5 L/min
Port Type	BSP Parallel Threads	Sensing Method	Variable Orifice Flow Meter
Operating Pressure	5000 psi	Operating Temperature	-20 to 90 °C

Product resources

Literature and Reference Materials

BULLETIN-High Pressure Mechanical Flowmeter - Flowline (PDF)
