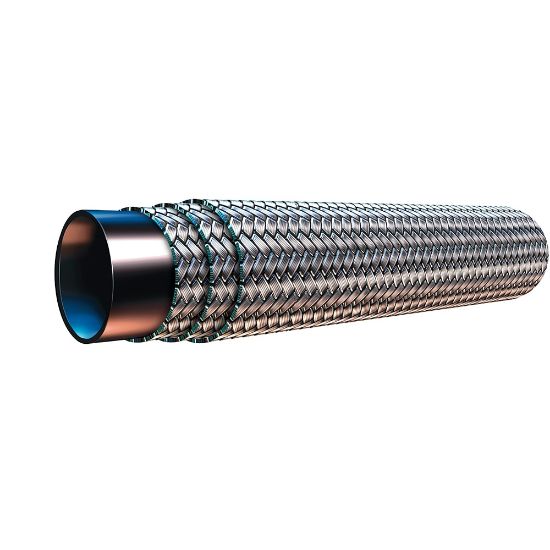

Picture of High Pressure PTFE Hose - 955B-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure PTFE Hose - 955B-4

PTFE High Pressure Hydraulic Hose Assemblies have exceptional chemical compatibility, resist moisture, and handle pressures up to 5,500 psi. They are designed for high temp hydraulics,chemical transfer, and compressor discharge applications.
Availability:
Backordered
SKU 955B-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Working Pressure (psi)5,500Dash Number-4
Minimum Bend Radius3Design Factor4:1
Maximum Operating Pressure5500Size-4
Weight0.23Cover Materialn/a
Inside Diameter15/64Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static Dissipative
Specifications MetN/AOutside Diameter0.500
Compatible Fitting95 SeriesHose Reinforcement MaterialMultiple Braids of Stainless Steel
ApplicationAdhesive DispensingMaximum Operating Temperature400
Minimum Operating Temperature-65Product StyleStatic Dissipative
MediaChemicals (Adhesive)
