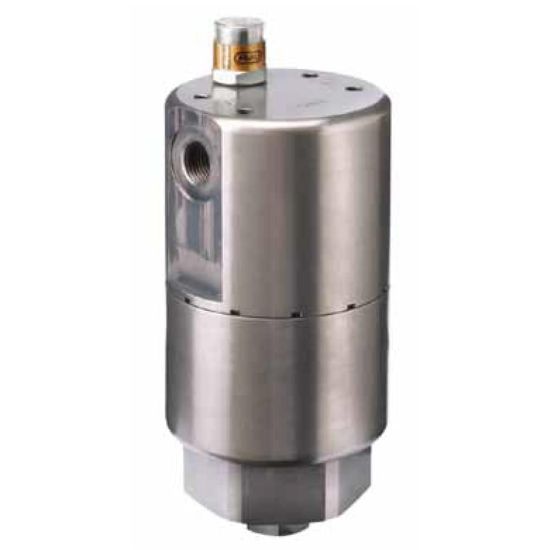

Picture of High Pressure Stainless Steel In-line Filter - EAPF iProtect® Series - EAPF1102QIHBM3MN082

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Stainless Steel In-line Filter - EAPF iProtect® Series - EAPF1102QIHBM3MN082

EAPF iProtect® stainless steel in-line filter series is designed to provide high quality filtration of hydraulic systems in marine, oil and gas and process equipment markets covering a flow range up to 120l/min at max 690 bar pressure level.
Availability:
Backordered
SKU EAPF1102QIHBM3MN082
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
OptionsNo bypassBypass Valve Pressure RatingNo Bypass
Micron Rating2 µmFilter Element Type02QI High Strength Element
Connection Type½" NPTFlow Rate0 to 45 l/min
Indicator TypeVisualIndicator Pressure Setting5.0 bar
Seal MaterialNitrileBrandPARKER
DivisionHydraulic & Industrial Process Filtration Division EMEAFor Fluid TypeHydraulic Oil
TechnologyFiltrationProduct TypeHydraulic Oil Filter
Filter TypeHigh Pressure Inline FilterApplication• Drilling equipment<br/>• Lifting equipment<br/>• Sub sea systems<br/>• Deck equipment<br/>• Flushing rigs<br/>• Chemical injection
DivisionHydraulic & Industrial Process Filtration Division EMEAProduct SeriesEAPF iProtect® Series
Industry• Oil and Gas<br/>• Marine<br/>• Process Equipment
