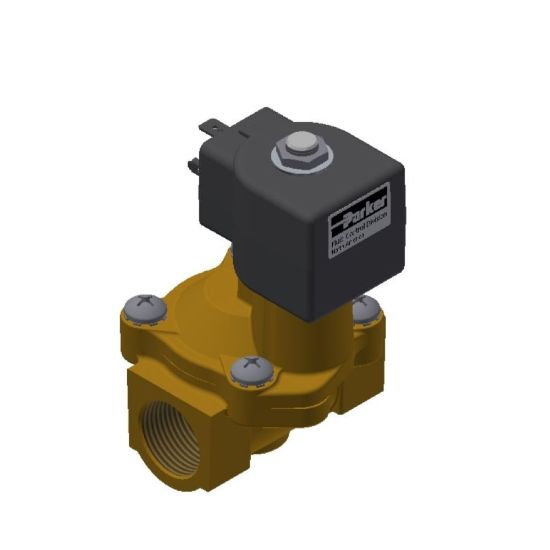

Picture of High Pressure Steam Valves - 73218BN64TS0N0D200Q3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Steam Valves - 73218BN64TS0N0D200Q3

Durable, high pressure, high flow steam valves for demanding hot water, and steam applications.
Availability:
Backordered
SKU 73218BN64TS0N0D200Q3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBRASSPort TypeNPT
Coil TypeDIN 43650A / ISO 4400FunctionNormally Closed
Input Voltage120/60, 110/50Actuation TypeInternally Piloted
Ingress Protection RatingNEMA 4,4XMediaWater, Hot Water, Steam
Seal MaterialPTFEInsulation ClassClass H
Specifications MetUL, CSA Listed General Purpose Valve; CE - Low Voltage, EMCMaximum Fluid Temperature353
Maximum Pressure Differential-Valve Type2 Way
Maximum Steam Pressure125Port Size1
InstallationIOM 7217Orifice Size1-1/16
Power Consumption10Main Flow Coefficient13.5
Preventive Maintenance Kit7K824Maximum Ambient Temperature77
Minimum Pressure Differential5Port Size1
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionFunctionNormally Closed (NC)
Valve Type2-WayMediaWater
Coil TypeDIN 43650A / ISO 4400Minimum Pressure Differential5
Input Voltage110/50Seal MaterialPTFE
Actuation TypeInternal PilotSpecifications MetUL
Ingress Protection RatingNEMA 4XMaximum Fluid Temperature353
Maximum Ambient Temperature77Maximum Pressure Differential-
Maximum Steam Pressure125Insulation ClassH (180°C)
Power Consumption10InstallationIOM 7217
Orifice Size1-1/16Main Flow Coefficient13.5
Preventive Maintenance Kit7K824
Product resources

Literature and Reference Materials
