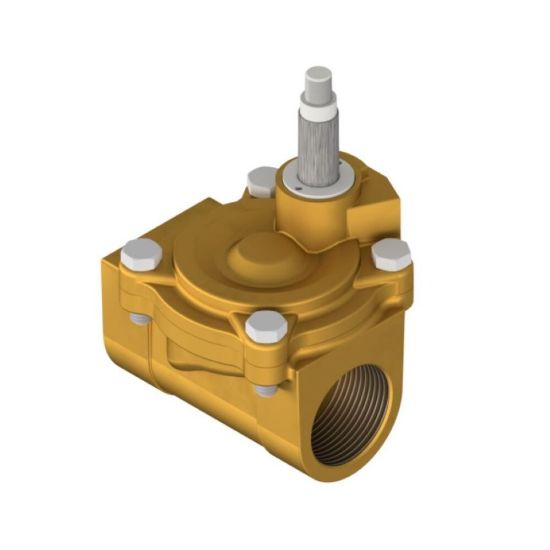

High Pressure Steam Valves - 73218BN75TS0

Name: High Pressure Steam Valves - 73218BN75TS0
SKU: 73218BN75TS0

Durable, high pressure, high flow steam valves for demanding hot water, and steam applications.

Availability:

Backordered

SKU 73218BN75TS0

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Port Type	NPT
Function	Normally Closed	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Specifications Met	N/A
Ingress Protection Rating	N/A	Media	Water, Hot Water, Steam
Seal Material	PTFE	Maximum Fluid Temperature	353
Maximum Pressure Differential	-	Valve Type	2 Way
Maximum Steam Pressure	125	Port Size	1-1/4
Orifice Size	1-1/8	Coil Type	Requires Class H Coil from Chart 7
Installation	IOM 7217	Insulation Class	Requires Class H Coil from Chart 7
Power Consumption	10	Main Flow Coefficient	16.0
Preventive Maintenance Kit	7K824	Maximum Ambient Temperature	77
Minimum Pressure Differential	5	Port Type	NPT
Body Material	Brass	Port Size	1-1/4 inch
Division	Fluid Control Division	Specifications Met	N/A
Function	Normally Closed (NC)	Valve Type	2-Way
Input Voltage	Pressure Vessel Only	Ingress Protection Rating	N/A
Media	Steam	Seal Material	PTFE
Actuation Type	Internal Pilot	Maximum Fluid Temperature	353 °F
Maximum Pressure Differential	- psi	Minimum Pressure Differential	5 psi
Maximum Steam Pressure	125 psi	Power Consumption	10 W
Orifice Size	1-1/8 inch	Maximum Ambient Temperature	77 °F
Coil Type	Requires Class H Coil from Chart 7	Installation	IOM 7217
Insulation Class	Requires Class H Coil From Chart 7	Main Flow Coefficient	16.0 Cv
Preventive Maintenance Kit	7K824

Product resources

Literature and Reference Materials

Tube Seal (PDF)
