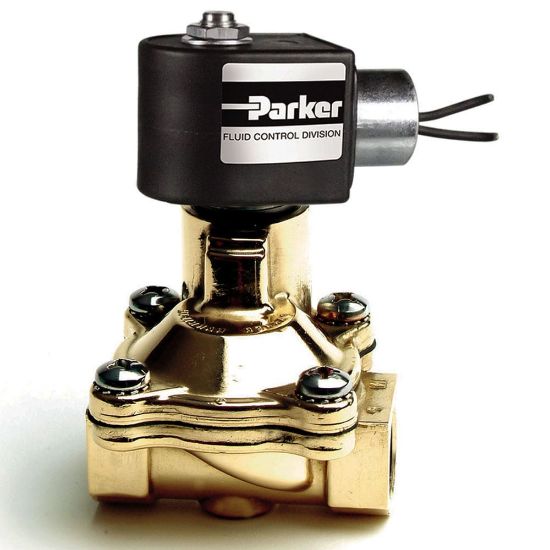

High Pressure Steam Valves - 73218BN75TS0N0H222P3

Name: High Pressure Steam Valves - 73218BN75TS0N0H222P3
SKU: 73218BN75TS0N0H222P3

Durable, high pressure, high flow steam valves for demanding hot water, and steam applications.

Availability:

Backordered

SKU 73218BN75TS0N0H222P3

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Port Type	NPT
Function	Normally Closed	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Media	Water, Hot Water, Steam
Seal Material	PTFE	Insulation Class	Class H
Maximum Fluid Temperature	353	Maximum Pressure Differential	-
Valve Type	2 Way	Maximum Steam Pressure	125
Port Size	1-1/4	Orifice Size	1-1/8
Specifications Met	UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC	Ingress Protection Rating	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C
Coil Type	1/2" NPT Conduit w/ 18" Leads	Installation	IOM 7217
Power Consumption	10	Main Flow Coefficient	16.0
Preventive Maintenance Kit	7K824	Maximum Ambient Temperature	77
Minimum Pressure Differential	5	Port Size	1-1/4
Port Type	NPT	Body Material	Brass
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Media	Water
Minimum Pressure Differential	5	Input Voltage	110/50
Seal Material	PTFE	Actuation Type	Internal Pilot
Specifications Met	UL	Maximum Fluid Temperature	353
Maximum Ambient Temperature	77	Maximum Pressure Differential	-
Maximum Steam Pressure	125	Insulation Class	H (180°C)
Power Consumption	10	Coil Type	1/2" NPT Conduit w/ 18" Leads
Installation	IOM 7217	Orifice Size	1-1/8
Main Flow Coefficient	16.0	Ingress Protection Rating	CSA Class 1, Div. 1
Preventive Maintenance Kit	7K824

Product resources

Literature and Reference Materials

Tube Seal (PDF)
