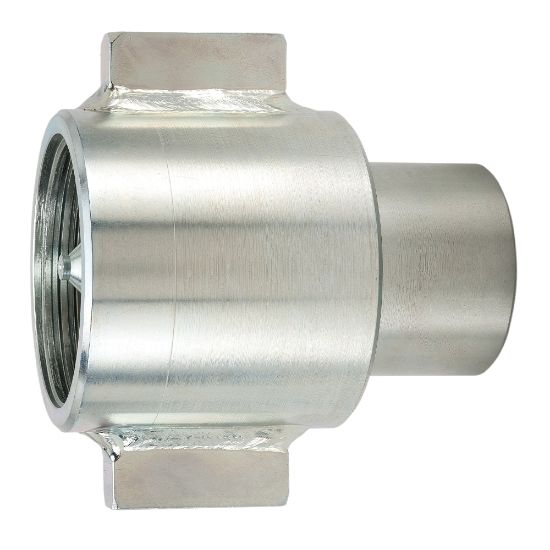

Picture of High Pressure, Thread to Connect Couplings, API 16D - 75 Series - 75C32-32RPW

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Thread to Connect Couplings, API 16D - 75 Series - 75C32-32RPW

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.
Availability:
Backordered
SKU 75C32-32RPW
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfFemale CouplerSleeve Typena
Connection TypeFemale BSPPBody Size (inch)2
Connection Thread Size (inch)2 - 11 1/2Maximum Operating Pressure345
Specifications MetAPI 16DValve TypePoppet
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
DivisionQuick Coupling DivisionPlating TypeZinc with clear trivalent chromate
ApplicationHydraulic high pressure, connect under pressureHex Size3.0 inch
Body MaterialSteelProduct TypeThread-to-Connect
Seal MaterialNitrile
