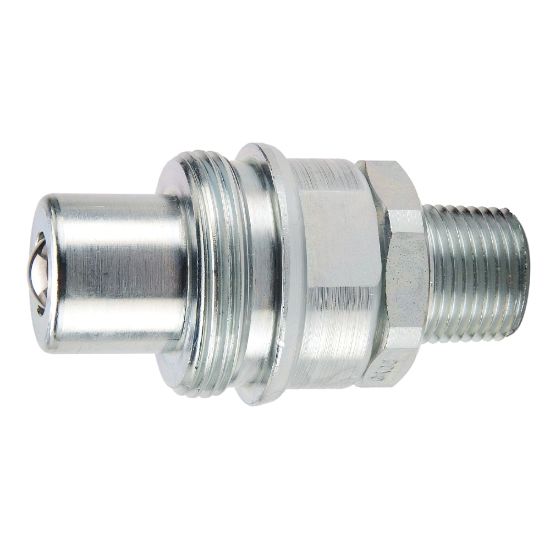

Picture of High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series - 3010-2M

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series - 3010-2M

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.
Availability:
Backordered
SKU 3010-2M
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfMale NippleConnection TypeMale NPTF
Connection Thread Size1/8 - 27Body Size1/4 inch
Body MaterialSteelMaximum Operating Pressure10000 psi
DivisionQuick Coupling DivisionSeal MaterialNitrile
Plating TypeZinc with clear trivalent chromateProduct TypeThread to Connect
Hex Size0.88 inchMinimum Operating Temperature-22 °F
Maximum Operating Temperature230 °FApplicationHydraulic, high pressure
Flow Rate3Valve TypeBall
