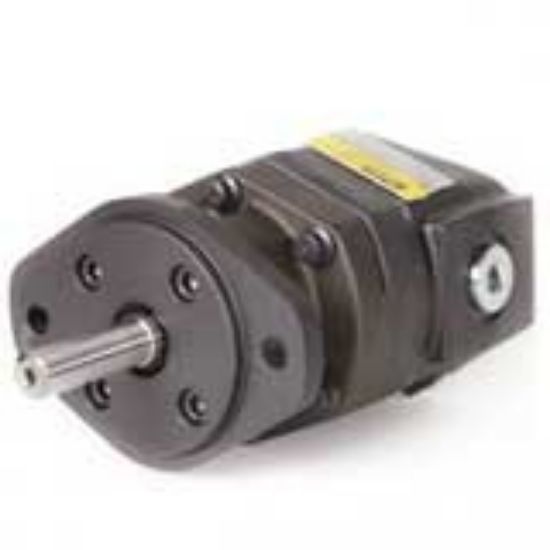

Picture of High Speed Motor - Nichols™ M4 Series - M4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Speed Motor - Nichols™ M4 Series - M4

The Nichols™ M4 high speed gerotor motor has a wide range of smooth operating speeds. Capable of running on low viscosity fluids, it has high starting torque. Intermittent pressures of 2400 psi, torque to 340 lb-in. Speed ranges from 30 to 7500 rpm.
Availability:
Backordered
SKU M4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Pressure Differential2400 psi Intermittent (2000 Continuous)BrandNichols™
Maximum Output Torque48 to 270 lb-inch Intermittent (39 to 230 Continuous)Maximum Operating Speed3000 to 7500 RPM at Intermittent Flow
Shaft Diameter0.625 inchMaximum Flow Rate21 to 42 L/min Intermittent (21 to 42 Continuous)
Minimum Starting Torque43 to 253 lb-inch Intermittent (40 to 313 Continuous)DivisionPump & Motor Division
Displacement2.45 to 12.29 cm3/rev (Motor)
