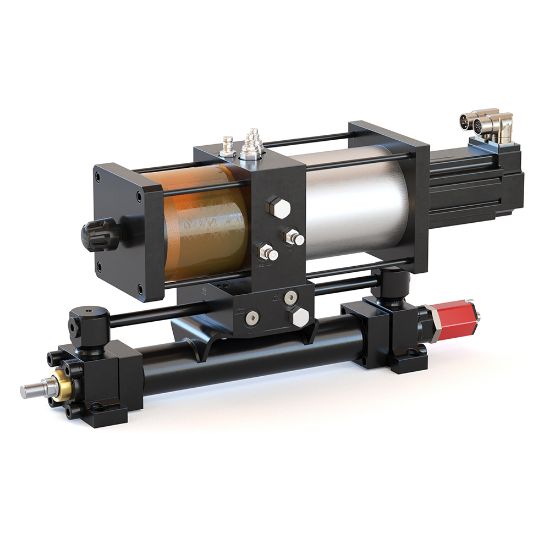

Picture of Hybrid Actuation System Cylinders - HAS 500 Series (Americas) - HAS 500 SERIES_SKU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hybrid Actuation System Cylinders - HAS 500 Series (Americas) - HAS 500 SERIES_SKU

HAS 500 Series’ hybrid design combines the controllability of electromechanical actuators with the durability of a traditional hydraulic system in an all-in-one actuation system that eliminates the need for a hydraulic power unit, hoses and valving.
Availability:
Backordered
SKU HAS 500 SERIES_SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
For Fluid TypeDuraClean (Std), Fire Resistance, Bio-Degradable and Cold Climate optionsAssemblyWelded Construction
Rod Diameter0.625 to 5.5Product TypeCylinder Actuator
Mounting Option19 Standard Styles at various application ratingsRated SpeedVaries per Bore Size, up to 6 inch per sec.
TechnologyHydraulicsSpecifications MetANSI (NFPA) T3.6.7R3-2009
Push Force800DivisionCylinder Division
Bore Diameter2 to 8LengthAvailable in any practical stroke length.
Operating Pressureup to 3000Operating Temperature10 to 165
CurrentVaries per Motor type and size, up to 30 amps (AC), 175 amps (DC).Displacement3
Product SeriesSeries HAS 500 Hybrid Actuation System CylindersOutput Power0.8 to 9.3 HP (Continuous)
Pressure Relief Settingup to 3300
