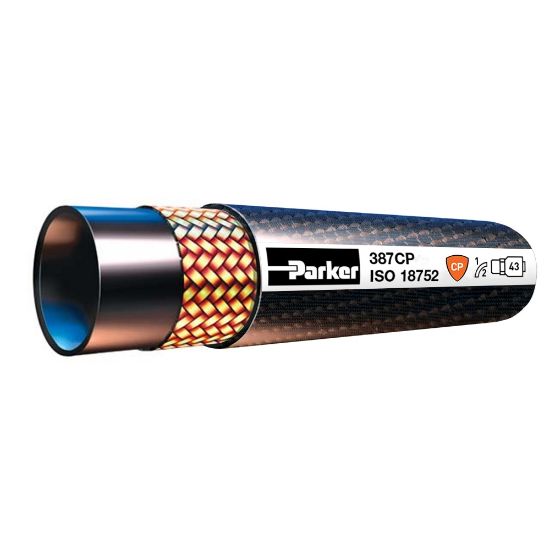

Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose - 387CP-12

Name: Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose - 387CP-12
SKU: 387CP-12

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Availability:

Backordered

SKU 387CP-12

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (size)	-12	Hose Cover Type	Critical Protection Cover
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Division	Hose Products Division
Minimum Operating Temperature	-40	Size	-12
Inside Diameter	3/4	Cover Material	Synthetic Rubber Abrasion Resistant
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	1 Braid of Steel Wire	Application	Lubricating Oils
Maximum Operating Pressure	3000	Media	Lubricants
Minimum Bend Radius	90	Nominal Hose Inside Diameter	19
Weight	0.86	Hose Cover Type	Critical Protection Cover
Outside Diameter	1.10	Specifications Met	ISO 18752, Type AC
Maximum Operating Temperature	257
