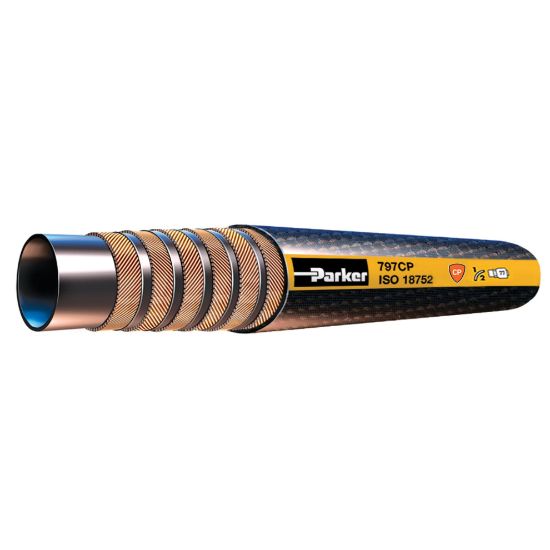

Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose - 797CP-16

Name: Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose - 797CP-16
SKU: 797CP-16

Part of the GlobalCore line of robust yet lightweight hydraulic hose, Parker’s 797 hose is an easy-to-bend, easier-to-install 6000 PSI constant working pressure hose.

Availability:

Backordered

SKU 797CP-16

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (size)	-16	Hose Cover Type	Critical Protection
Division	Hose Products Division	Minimum Operating Temperature	-40
Inside Diameter	1	Size	-16
Cover Material	Synthetic Rubber Abrasion Resistant	Maximum Operating Pressure	6000
Application	Lubricating Oils	Media	Lubricants
Weight	1.17	Compatible Fitting	77 Series
Specifications Met	MSHA TC, ST & CP covers only	Maximum Operating Temperature	257
Hose Inner Tube Material	Proprietary Synthetic Rubber Compound	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire
Outside Diameter	35.7	Minimum Bend Radius	6.50
Nominal Hose Inside Diameter	1
