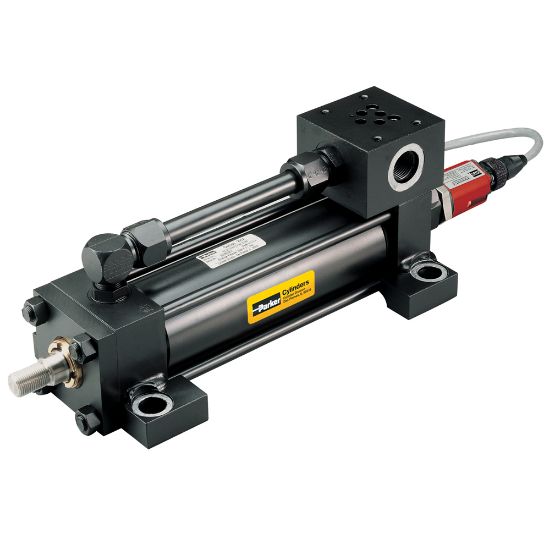

Picture of Hydraulic Cylinders, Electrohydraulic – Parker Series 2HX/3HX Family (Americas) - SERIES 2HX 2HDX AND SERIES 3HX 3HDX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Cylinders, Electrohydraulic – Parker Series 2HX/3HX Family (Americas) - SERIES 2HX 2HDX AND SERIES 3HX 3HDX

Heavy Duty Electrohydraulic Cylinders – Series 2HX/3HX, 2HDX/3HDX and 2HBX/3HBX – are engineered for your feedback/control systems with transducer, valve manifold and hydraulic plumbing and are electronically tested to verify required output.
Availability:
Backordered
SKU SERIES 2HX 2HDX AND SERIES 3HX 3HDX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Specifications MetANSI (NFPA) T3.6.7R3-2009. Mounting and Specification. Heavy Duty Service.Product SeriesSeries 2HX, 3HX Electrohydraulic Cylinders
Operating Temperature-10 to 165Materials of ConstructionSteel
Stroke LengthAvailable in any practical stroke length.For Fluid TypeHydraulic Oil
Rod Diameter1 to 5.5Mounting Type18 Standard Styles at various application ratings
ConfigurationSquare HeadOperating Pressure3000
Product TypeCylinder ActuatorTechnologyHydraulics
DivisionCylinder DivisionBore Diameter2 to 8
