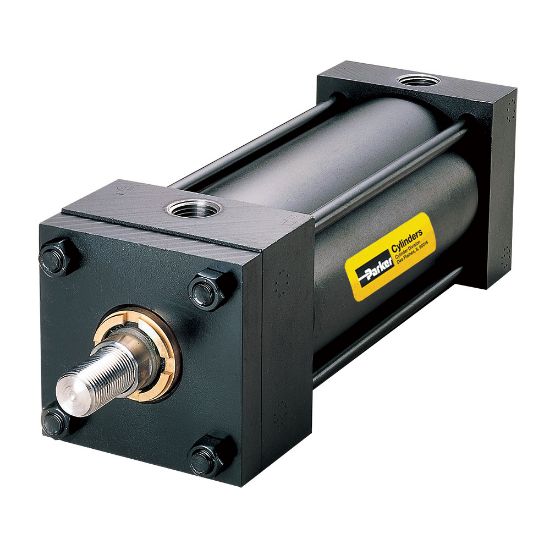

Picture of Hydraulic Cylinders - Medium Duty, Tie Rod Construction - Series 3L (Americas) - SERIES 3L

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Cylinders - Medium Duty, Tie Rod Construction - Series 3L (Americas) - SERIES 3L

Series 3L medium duty hydraulic cylinders offer advanced features like the “Jewel” rod gland assembly, adjustable floating cushions, case hardened piston rods and high strength tie rods with rolled threads - compare and choose the Parker advantage.
Availability:
Backordered
SKU SERIES 3L
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Product SeriesSeries 3L Medium Duty Hydraulic CylindersOperating Pressure1000 psi Bore Size Dependent
ConfigurationSquare HeadProduct TypeCylinder Actuator
Bore Diameter1 to 8TechnologyHydraulics
Mounting Type16 Standard Styles at various application ratingsDivisionCylinder Division
Rod Diameter0.5 to 5.5Materials of ConstructionSteel
Operating Temperature-10 to 165Stroke LengthAvailable in any practical stroke length.
For Fluid TypeHydraulic OilSpecifications MetANSI (NFPA) T3.6.7R3-2009. Specifications and Mounting. Dimension Standards.
